DRIVE SYSTEM
Motor
Axial flux center motor 1.5KW Nominal, 6.5KW peak power, 6,365 RPM, 195 Nm Max torque
Motor Controller
External FOC with dynamic vector control algorithm for speed/torque
Max Speed
95km/h
Max Torque
195 Nm at 500rpm
POWER SYSTEM

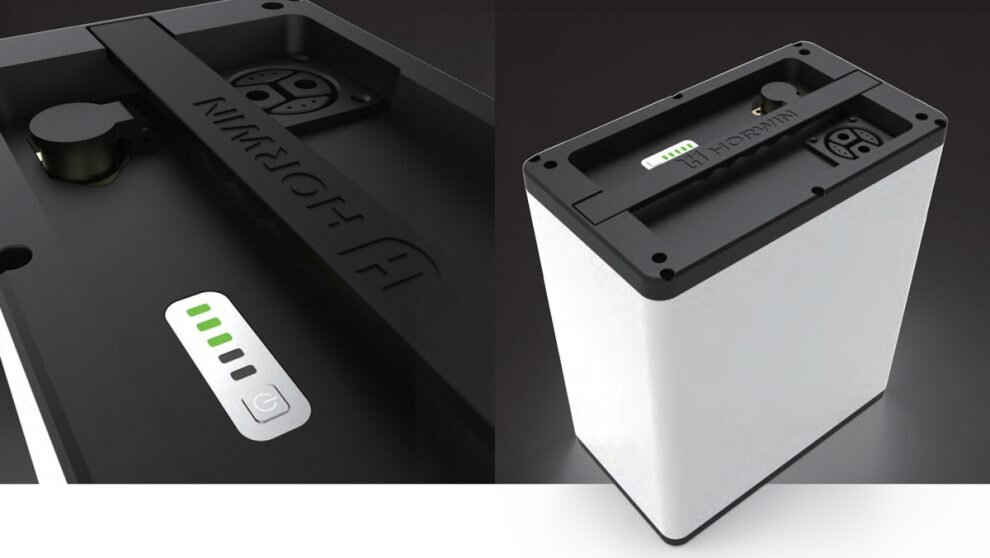

Battery Pack
72V 40AH Panasonic Lithium-Ion battery pack
Power System Protection
150A resettable circuit breaker, low-voltage cut-out (by controller), Battery protected by BMS
Standard Charger
Li-Ion external, 72V 10 A Automatic Charger, 110VAC input ~4hr charge time
12V Subsystem Converter
DC/DC 72V<12V 10A

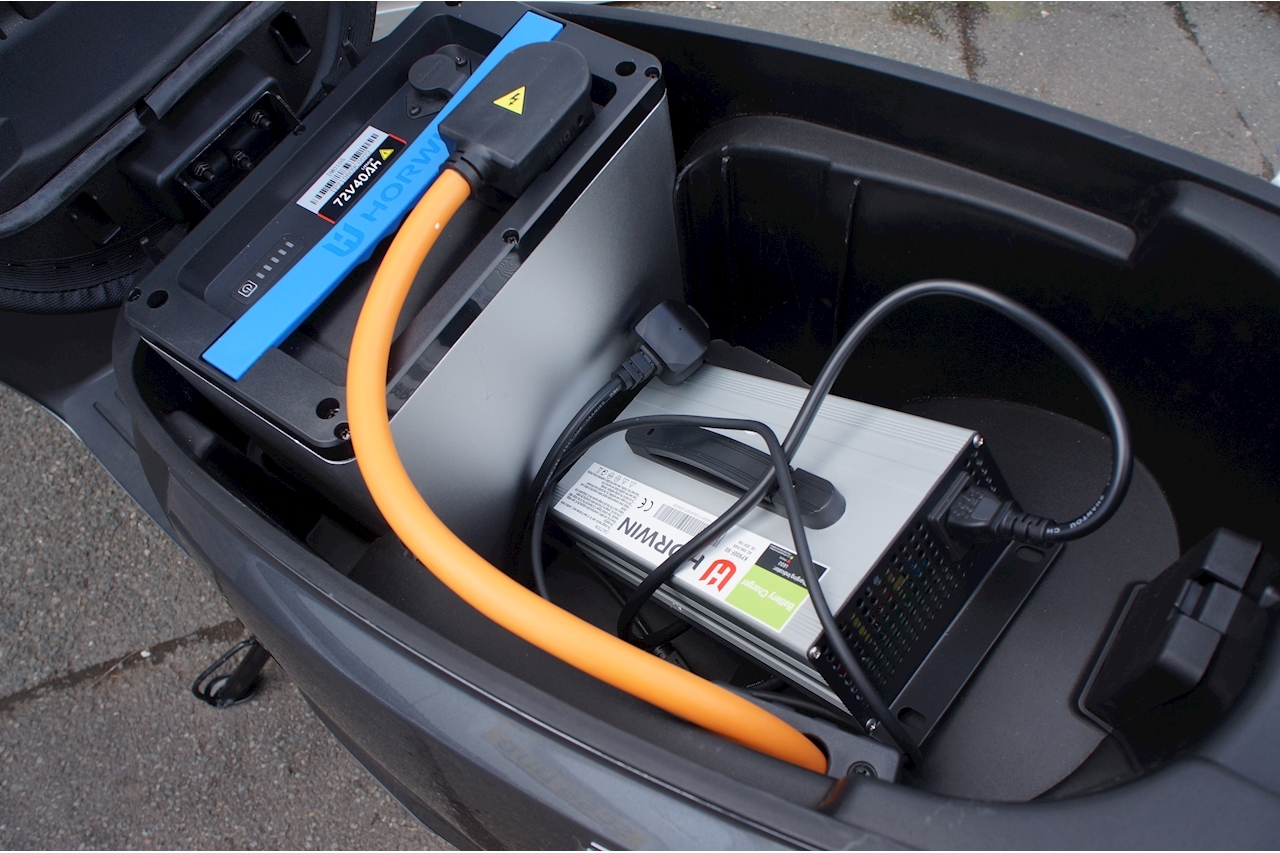

User-removable Battery
Yes
USB Charging Port
Yes, 1A USB port
Brakes Hydraulic CBS
Front brake – Right Lever – activates Racer type 240mm disk CBS with the rear wheel
Rear brake Left Lever – activates 180mm rear disk only
RUNNING GEAR
Front Suspension
1:7.8 reduction with chain transmission
Inverted 700mmX35mm twin internal hydraulic shocks with 200mm travel distance
Rear Suspension
Adjustable dual over spring/hydraulic shock
Front Tire
Tubeless 14” X 3.5” DOT-spec
Rear Tire
Tubeless 13” X 3.5” DOT-spec
BODY & CHASSIS
Frame
Aluminum-magnesium alloy
Shell
ABS composite, epoxy paint
Foot rests
Fixed
Seat
Padded, double place, 780mm (30”) above ground
Instruments
Classic/LCD bright dashboard displays Current speed, Total mileage, Error codes, Real time output current, Battery State of Charge, trip distance and remaining distance, Ambient temperature and current time. Automatically illuminates on low ambient light.
Safety Equipment
Automatic Light mode estimating the ambient light for the right intensity
Dual rear-view mirrors, horn, dual high/low beam automotive grade LED headlights with running light, front and rear turn signals, tail light, brake light
License plate light
Hazard lights, LED headlight bulb with focusing optic
Security
Keyless start, Built-in vibration sensitive alarm system with two remote controls, steering lock
PERFORMANCE
Top Speed
70km/h as per LSM regulations or 95km/h if registered as an open motorcycle
Range
| Mode | Range |
| Eco mode (45 km/h) | 100/200 km |
| Sport (95km/h) | 65/130 km |
Climbing Ability
| Load | Incline[%] | Degree | |
| [Kg] | [Lbs] | ||
| 60 | 132 | 30 | 17 Deg |
| 75 | 165 | 26.8 | 15 Deg |
| 90 | 198 | 23 | 13 Deg |
| 105 | 231 | 19.4 | 11 Deg |
| 120 | 264 | 17.6 | 10 Deg |
*Results are almost same as TC but there is almost no change at the speed on hills
DIMENSIONS & WEIGHTS
Weight (including Battery Pack)
140kg (308lb)
Wheelbase
1320mm (52”)
Seat height
700mm (28”)
Overall Length
2040mm (80”)
Maximum Payload Capacity, Including Rider(s)
140 kg (308 lb)
Optional Accessories
GPS tracker
Helmet
Goggles
Windshield
Rain cover
Hand protectors
