TECHNICAL SPECIFICATIONS
at a glance

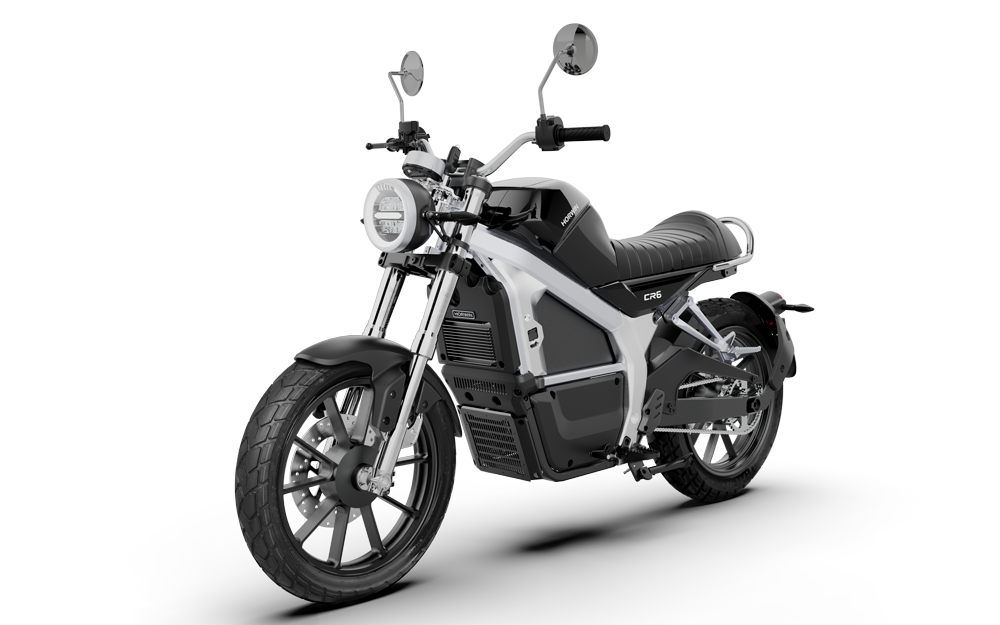

HORWIN CR6
Engine
-
Max. power: 6.2 kW
-
Motor type: Electric center motor permanent magnet synchronous motors
-
Manufacturer: HORWIN
-
Power management: Field Oriented Control (FOC)
-
Max. torque: 260 Nm
-
Max. slope: abt. 17 ° at drive off
-
Acceleration: 0–60 km/h in 6 sec
-
Max. speed: 95 km/h
Brake System
-
CBS Disc Brake: for front and rear
Frame
-
Frame: Aluminum-Magnesium Alloy
Measurements
-
Wheelbase: 1395 mm
-
Length: 2040 mm
-
Width: 770 mm
-
Height: 1120 mm
-
Seat height: 870 mm
-
Ground clearance: 165 mm
-
Net weight: 107 kg (without battery)
-
Front wheel: 100/80–17 M/C 52S E-mark
-
Rear wheel: 120/80–17 M/C 61S E-mark
-
Seats: 2
-
Technically permissible maximum laden mass: 304 kg
Battery
-
Battery type: Lithium Ion
-
Power cells: Panasonic 18650
-
Voltage: 72 V
-
Capacity: 53 Ah
-
Max. range: 120 km (according to EEC test method)
-
Charging time: 3 h 0–80 %
-
Charging current: 220 V/15 A
Features
-
Lights: LED (front, rear, flashing)
-
Display: Round Classical LCD, Automatic brightness adjustment
-
Theft warning system: Yes, electronic
-
Keyless Go: Yes
