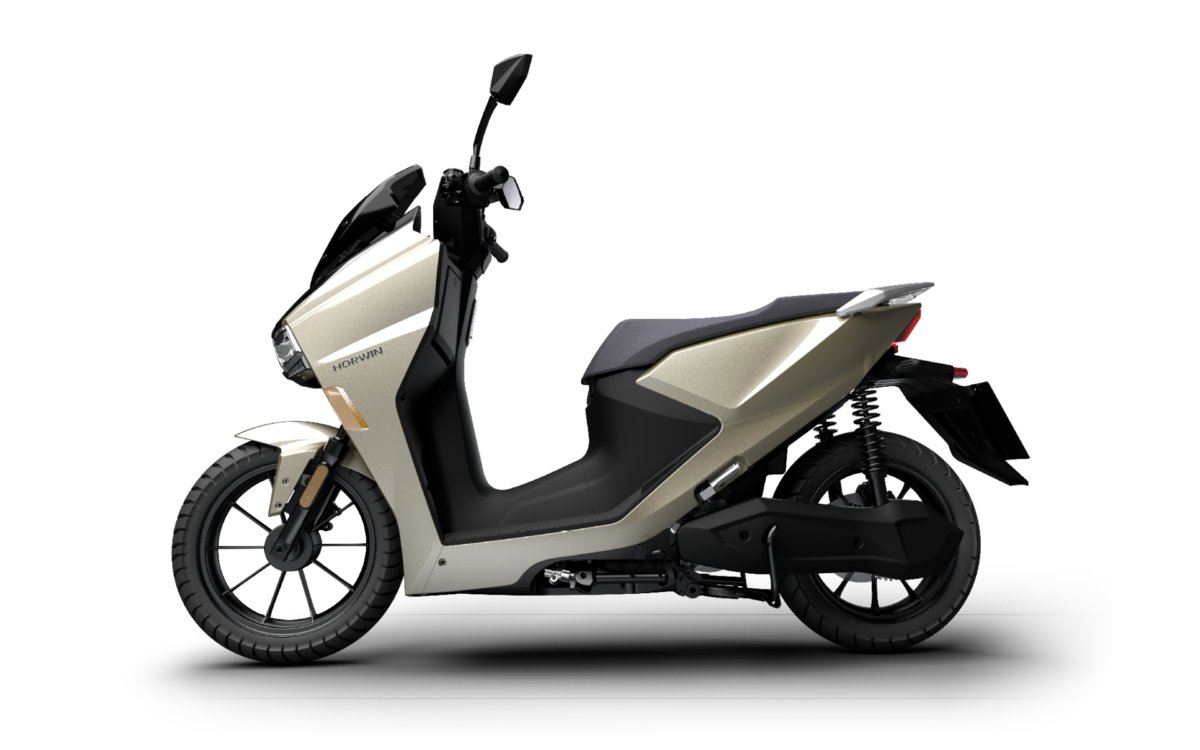

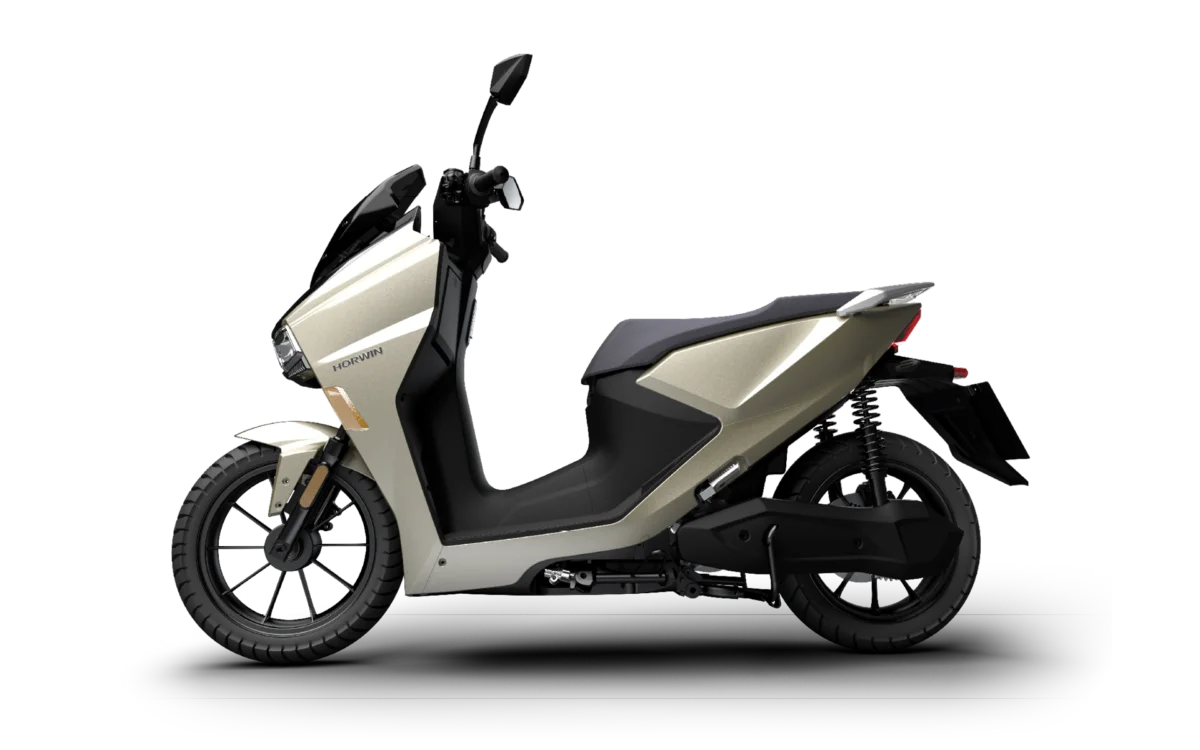

SIZE & MOTOR
-
Length: 1993 mm
-
Width: 742 mm
-
Height: 1136 mm
-
Seat hight: 790 mm
-
Center motor
-
FOC energy management
-
Battery: 72 V, 36 Ah (optionally 72 Ah with second battery – max. range 158 km)
DIMENSIONS
-
Front wheel: 100/80-14
-
Rear wheel: 120/70-14
-
Wheelbase: 1360 mm
-
Min. ground clearance: 155 mm
-
Kerb weight (without battery): 94 kg
-
Technically permissible maximum laden mass: 282 kg
-
Hub: Aluminium alloy
SPECIFICATIONS
-
Maximum power: 6.3 kW
-
Top speed: 90 km/h
-
Max. range: 79 km (according to EEC test)
-
Loading cycles: approx. 1000 times
-
Braking system: CBS
-
Charging time (8A): 36 Ah/ approx. 4.5 h (0-100%)
